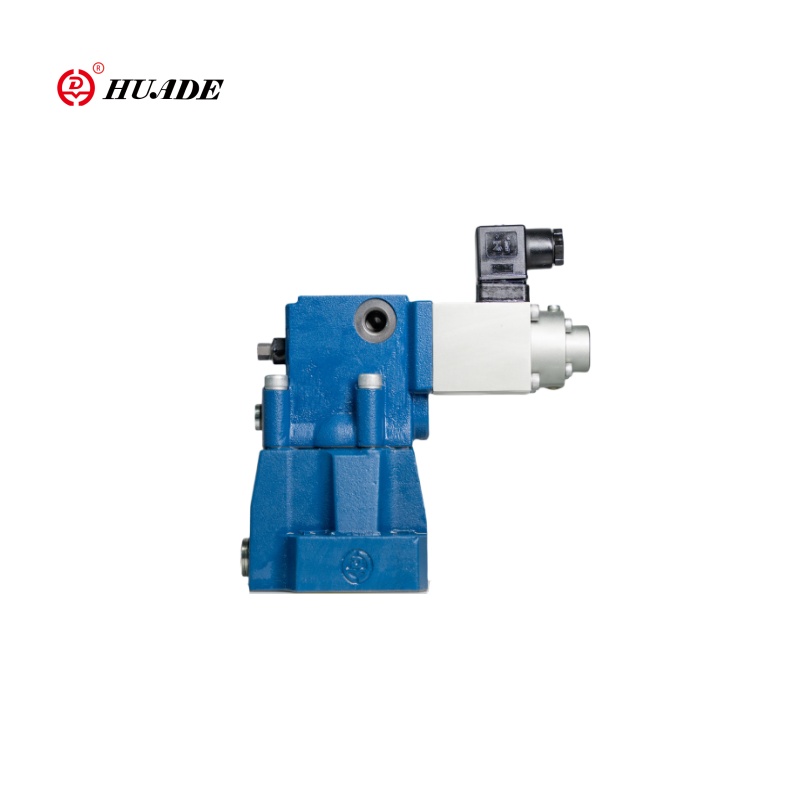

Proportional Pressure Relief Valve DBE

The DBE series proportional pressure reducing valve can smoothly set the system pressure through the operation of a proportional solenoid, meeting different working requirements. The characteristics of this product include precise control, stability and reliability, and easy to maintain. Proportional pressure reducing valve DBE is available in multiple models and specifications to satisfy different needs. For example, Huade Hydraulic produces models such as the DBE10-30B/315YMDREM and DBE20-30B/200XYM proportional pressure reducing valves, which have different working pressure ranges and flow characteristics, allowing users to select according to their needs.

Product parameter of Proportional Pressure Relief Valve DBE

Hydraulic data
Max.operating pressure Ports A. B and X (MPa)	31.5
Return pressure (MPa)	Port Y, separate and at zero pressure to tank
Max. settable pressure (MPa)	5. 10. 20. 31.5 same as pressure stage
Min. settable pressure (MPa)	see characteristic curves
Max. pressure safety (MPa)	settable pressure
	5	10	20	31.5
	1to 6²	1to 12²	1 to 22²	1to 34²
Max. flow (L/min)	10	20	30
	200	400	600
Pilot flow (L/min)	0.7 to 2
Linearity (%)	±3.5
Repeatability (%)	<±2
Typical variation (%)	< ±2 Max. pressure
Hysteresis (%)	With surge ± 1.5 of Max.pressure.Without surge ± 4.5 of Max.pressure
Switching time	30 to 150
Pressure fluid	Mineral oil(for NBR seal), Phosphate ester (for FPM seal)
Viscosity range (mm2/s)	2.8 to 380
Pressure fluid temperature range(℃)	-20 to+70
Degree of contamination(μm)	≤20(recommendation 10)

Electrical technical data
Amplifier	VT-200g40 supplied with valve together
Supply voltage	DC
Min.control current (A)	0.1
Max.control currenl (A)	0.8
Coil resistance（Ω）	Cold value at 20℃ is 19.5; Max.wam value is 28.8
Pressure fluid temperature range(℃)	+50
Working state	Continue
Valve protection	IP65
Electrical connections	plug

Product Feature And Application of Proportional Pressure Relief Valve DBE

Features:

▶For subplate mounting

▶Encased in block

▶Optional additional maximum pressure limitation by means of a spring loaded pilot control valve

▶Valve and electronic control form one source

Application:

The DBE series proportional pressure relief valve are widely used in various hydraulic systems that require precise pressure control, such as construction machinery, metallurgical equipment, shipbuilding, and other fields. They play a crucial role in these fields, enhancing the stability and reliability of the systems.

Function and section of Proportional Pressure Relief Valve DBE

These valves basically consist of the pilot control valve (1) with proportional solenoid (2) and the main valve (3) with main spool insert (4).

Type DBE:

The adjustment of the pressure is command value dependent via a proportional solenoid (2). The pressure present in port A acts on the underside of the main spool (4). At the same time this pressure acts on the spring loaded side of the main spool (4) via orificies (5). The hydraulic force acts on the pilot poppet (6). When the hydraulic force over comes the solenoid force then the pilot poppet (6) opens. Due to the fact that the pilot oil can now flow to tank via port Y, a pressure drop occurs at the main spool (4) which acts on the main spool and lifts it against the force of the return spring . The connection from A to B is opened and there is no longer any increase in pressure

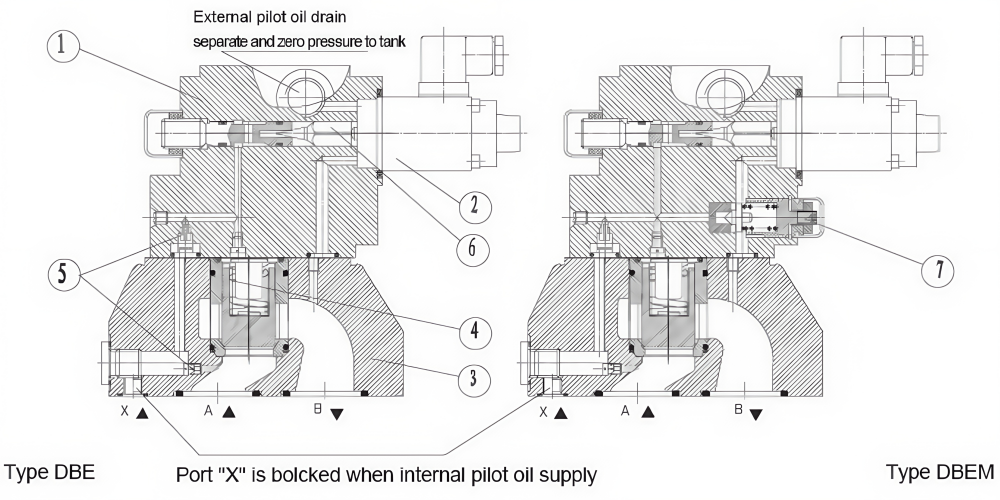

Structure of Proportional Pressure Relief Valve DBE

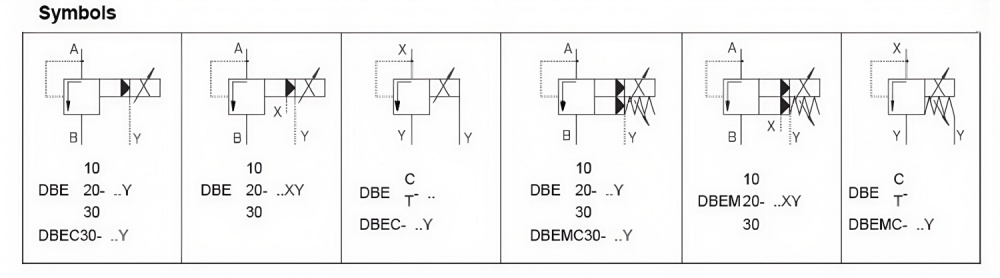

Symbol of Proportional Pressure Relief Valve DBE
